Unit of Measure
Specifications
Brands |
N/A Vooner FloGard® Vooner VaneGard® |
Type |
N/A Single stage rotor, cone shape ports, liquid ring vacuum pump |
Cone Opening Vacuum Level |
N/A High (H) |
Nominal Sealing Liquid Flow Rate at 24 to 26 Inch (in) Mercury Gauge (HgV) Vacuum |
N/A 75 L/min20 g/min |
Sealing Liquid Connection Size |
N/A 1 in |
Sealing Liquid Connection Type |
N/A National Pipe Thread (NPT) |
Shaft Sealing |
N/A Packing |
Bearing Design |
N/A Double row spherical roller bearing, external, grease lubricated, Type: NSK 21311EAE4 |
Shaft Diameter (Drive End) |
N/A 2 in50.8 mm |
Pump Inlet Flange Connection Size |
N/A 4 in100 mm |
Pump Outlet Flange Connection Size |
N/A 3 in80 mm |
Manifold Inlet Flange Connection Size |
N/A 6 in150 mm |
Manifold Outlet Flange Connection Size |
N/A 4 in100 mm |
Approximate Pump Weight |
N/A 900 lb410 kg |
Certifications |
N/A German Institute for Standardization (DIN) |
Material Construction Features
Rotor Material |
N/A Ductile Iron |
Cone Material |
N/A Cast Iron |
Head Material |
N/A Cast Iron |
Bearing Carrier Material |
N/A Carbon Steel |
Housing Material |
N/A Cast Iron |
Shaft Material |
N/A Carbon Steel |
Package Gland, Studs, and Nuts Material |
N/A 316 Cast Stainless Steel (SS) |
Test Data Conditions
Inlet Gas Temperature |
N/A 15.6 ºC60 ºF |
Relative Humidity |
N/A 50 % |
Absolute Barometric Pressure |
N/A 760 mmHg29.92 inHg |
Sealing Liquid Temperature |
N/A 15.6 ºC60 ºF |

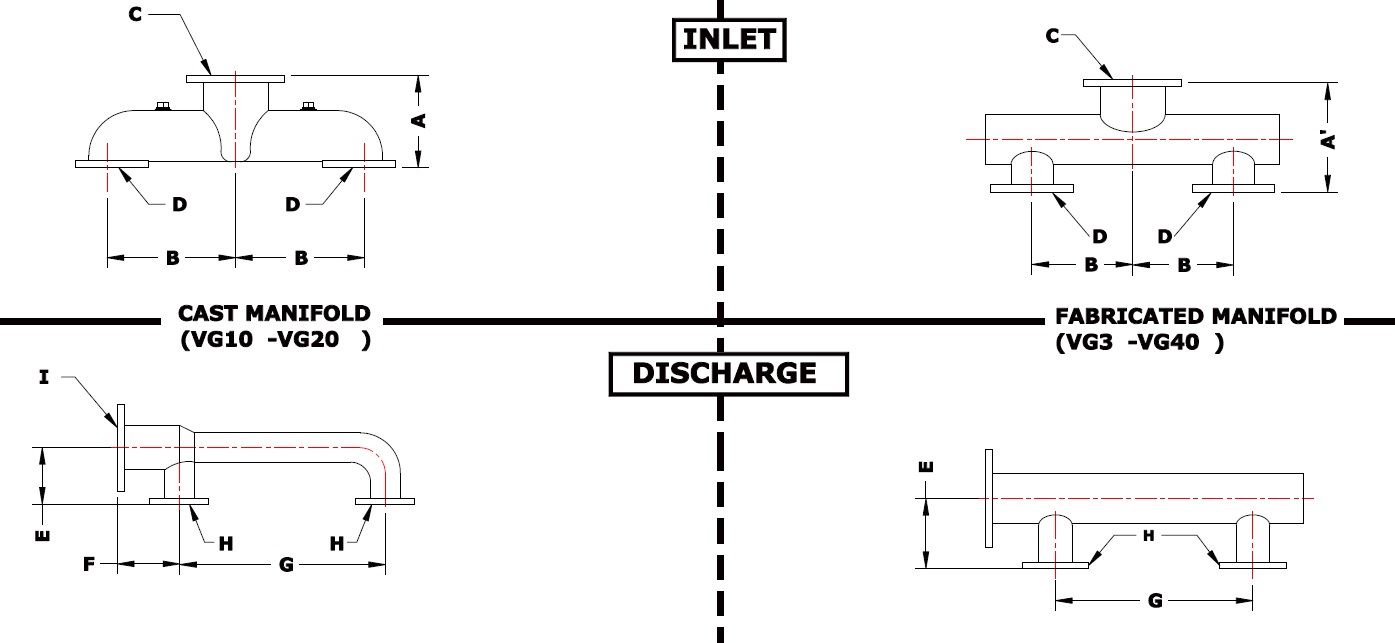

Dimension
Inlet Size A' |
N/A 11 in |
Inlet Size B |
N/A 10-5/8 in270 mm |
Inlet Flange Size C |
N/A 6 x 11 in150 x 285 mm |
Inlet Flange Size D |
N/A 4 x 9 in |
Discharge Size E |
N/A 5-1/4 in133 mm |
Discharge Size F |
N/A 5-3/4 in146 mm |
Discharge Size G |
N/A 21-1/4 in |
Discharge Flange Size H |
N/A 3 x 7-1/2 in |
Discharge Flange Size I |
N/A 4 x 9 in100 x 220 mm |
Note for Dimension |
N/A
|
