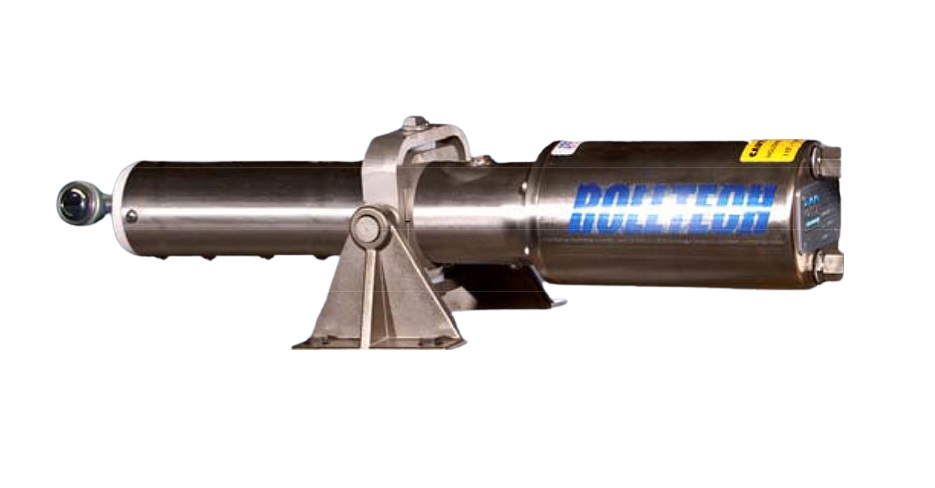

The ROLLTECH® Actuator is the basic model in a series of highly specialized shower actuators optimized for their respective range of applications. The advanced "Rollnut" technology has a roller package that rides in single helical groove on the shaft providing a line contact arrangement versus a point contact as in a ball reverser screw design. Efficiency remains constant at a high level at varying load requirements.
Unit of Measure

Specifications

Brands

 N/A ROLLTECH® Vooner FloGard®

Warranty

 N/A 12 months

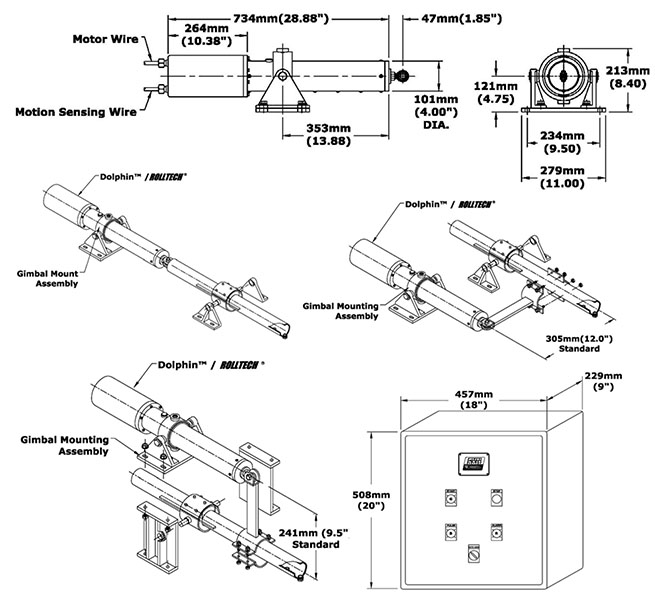

Stroke Length1 N/A Up to 12 inUp to 305 mm

Technical Data

Type

 N/A ROLLTECH® actuator for oscillating paper machine showers to achieve complete coverage cleaning.

Manufacturer

 N/A Vooner Paper Machinery, Greeneville, TN, USA

Wetted Parts

 N/A All Wetted Parts 316 Stainless Steel (SS)

Lubrication

 N/A The ROLLTECH® actuator ships with oil and will not need lubrication during it's life.

Maintenance

 N/A None

Control Panel Height

 N/A 20 in

Control Panel Width

 N/A 18 in

Control Panel Depth

 N/A 9 in

Control Panel Alternating Current (AC) Voltage

 N/A 110 V

Control Panel

 N/A NEMA 4X, door safety switch, material fiberglass. 110 VAC power, (2) 4 amp thermal breakers, PLC is Modicon Twido start/stop button, manual/auto switch. Three (3) lights: start, pulse, and alarm 4-20 ma connections for DCS.

Motor Power

 N/A 0.025 hp0.0186 kW

Motor Alternating Current (AC) Voltage

 N/A 220 V

Motor Phase

 N/A 3

Motor Current

 N/A 0.3 A

Motor Frequency

 N/A 50 Hz60 Hz

Motor Speed

 N/A 60 rpm72 rpm

Note for Motor

 N/A An integral gear box is attached for stroke rate.

Motion Sensing Direct Current (DC) Voltage

 N/A 24 V

Proximity Switch

 N/A Note two wires from motor housing, a motor lead and a proximity switch lead clearly marked as to how to connect. A separate power connection, 110 VAC, is needed for a panel board if used.
Home Proximity Switch Direct Current (DC) Voltage2 N/A 24 V
Actuator Weight3 N/A 60 lb

Motor Cover Temperature

 N/A 43 to 54 ºC110 to 130 ºF

Maximum Motor Shell Temperature

 N/A 100 ºC212 ºF

Note for Temperature

 N/A A water cooled jacket is available for higher temperature environments.

Noise

 N/A < 80 dB

Additional Information

Additional Information

 N/A The "Strong One" . . . Designed for tough applications of up to 1000 lbs linear force.
  • Compact design - for easy installation and maintenance.
  • Handles any shower length.
  • Adjustable stroke rate.
  • Ideal for tough paper mill environments.
  • Rollnut Technology uses low friction, highly efficient roller packages.
  • Gimbal Mounting for reduced load during oscillation.
The ROLLTECH® Actuator is mounted in a gimbal mounting near the balance point of the actuator allowing some multi-directional movement which provides a nonbinding movement of the actuator. This arrangement is very forgiving of slight misalignment of the actuator and shower and prevents premature failure due to excessive binding loads. Split bearings with UHMW Polyethylene liners and anti-rotation bars keep the shower in correct position and allow removing the shower from the paper machine and replacing it again without realigning the bearings.

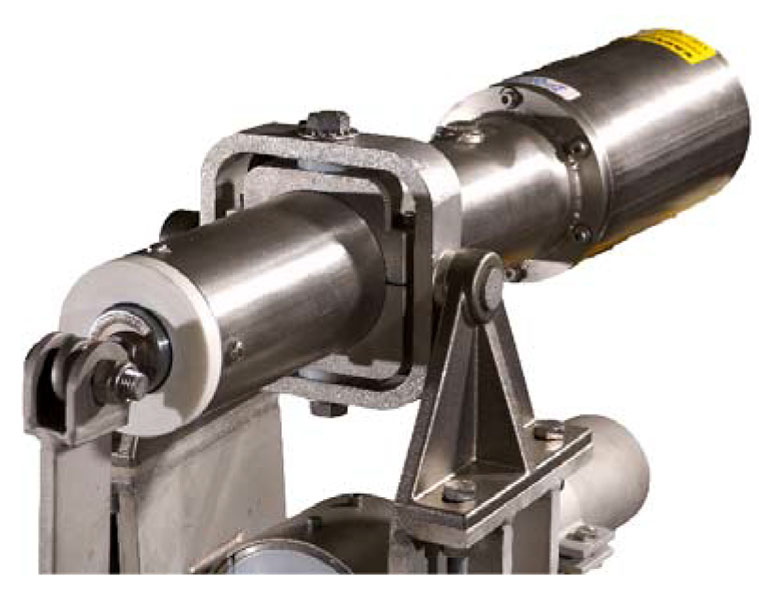

ROLLTECH® shower actuator with gimbal mounting attached.

Service

Service

 N/A
  • Spare actuators, parts, and rebuild services are located in Greeneville, Tennessee.
  • Onsite technical service is available from Greeneville, Tennessee.
  • 1 Infinite adjustment of stroke length.
  • 2 The proximity switches share one of two wires out of the motor housing. The second wire is the 220-volt motor wire. The control panel requires a separate 110-volt electrical connection.
  • 3 Attached gimbal mounting weight 12 lbs (without trunnions), total assembly weight 72 lbs.
